M icrUs

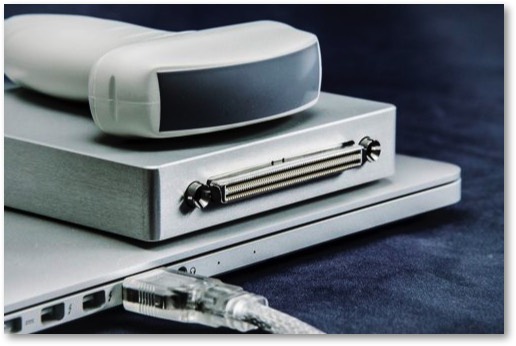

MicrUs is a new generation of a USB-powered pocket-size point of care ultrasound imaging system. It offers ultrasound screening in B, M, B/M, 4B modes together with Speckle Reduction Processing, Trapezoid and Spatial compound imaging. Various transducers can be connected and disconnected in second thanks to advanced probe recognition technology. MicrUs is a fanless device so it’s well suited for ultrasound-guided procedures. Ultrasound scanner can be fully controlled from a remote computer providing possibilities for telemedicine and educational purposes. Software Development Kit available to scientific organizations and industry enables advanced manipulation with the ultrasound data and customization of the user interface.

MicrUs EXT-1H Kit includes:
  • MicrUs EXT-1H beamformer
  • ultrasound transducer
  • USB cable
  • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
  • software, assembly and set-up manual, operation manual (on USB memory)


Mód zobrazenia
  • B
  • B+B
  • 4B
  • B+M
  • M
  • Compound
  • Trapezoid
Ultrazvukový obraz
  • ultrasound image size: automatically adjustable to screen resolution
  • gray scale: 256
  • full motion and full size real-time ultrasound imaging, up to 120 fps (depends on selected scan depth, scan angle, focus mode, High Line Density setting, computer speed)
  • cineloop recording/play: several thousands frames (depends on computer memory size and scan mode)
  • zoom mode: from 60% to 600% in all modes (Scan, Freeze, B, B+B, 4B, M-zoom, cineloop and etc)
  • viewing area variable for frame rate maximizing: 6 steps
  • thumbnail mode: up to 32 images
  • "Freeze" mode
  • "Auto Freeze" mode
Metódy skenovania
  • electronic linear
  • electronic convex
  • electronic microconvex
  • scanning depth: 2-31 cm
  • from 2,0 MHz to 15,0 MHz
  • multifrequency
  • automatic transducer recognition
  • number of ports: 1
  • transmit: variable, 8 zones
  • receive: point to point, dynamic
Automatická optimalizácia obrazu
  • single click auto adjustment:
  • gain
  • dynamic range
  • TGC sliders
  • High Line Density scan mode for better resolution
  • TGC Control, 5-10 sliders (customizable) 40 dB
  • dynamic range: 120 dB, 8 values
  • overall gain control
  • M - mode sweep speed control
  • acoustic power control
  • variable frame averaging
  • brightness, contrast
  • advanced gamma control: 8 fixed curves, 8 user defined (custom)
  • scan direction, rotation, up-down controls
  • negative / positive control
  • bi-linear interpolation
  • echo enhancement control
  • noise rejection function
  • speckle reduction and structure improvement PureView, NeatView, QuickView: 8 algorithms each
  • Verification SCU
  • Modality Worklist (MWL) SCU
  • Modality Performed Procedure Step (MPPS) SCU
  • Store SCU (images, cines)
  • Print SCU (grayscale, color)
For more information see Echo Wave II Software DICOM Conformance Statement
  • mouse / trackball / keyboard operation
  • image and video save / load:
  • AVI
  • JPG
  • BMP
  • PNG
  • TIF
  • XLSX
  • DCM (DICOM uncompressed)
  • TPD (Telemed Picture Data)
  • TVD (Telemed Video Data)
  • unlimited programmable presets for clinically specific imaging
  • anatomical icons with transducer position indicator
  • direct e-mail sending with image or video attachment via Internet
  • DICOM file push to server
  • print to system printer
  • TV output via computer display adapter
  • multi-monitor support
  • full screen and window mode
  • LB-2 keyboard (optional) support
Nastaviteľnosť ovládacieho rozhrania
  • the set of predefined skin schemes for software interface
  • the set of predefined buttons images
  • multilanguage support, languages:
  • Chinese
  • English
  • French
  • German
  • Italian
  • Korean
  • Lithuanian
  • Magyar
  • Polish
  • Romanian
  • Russian
  • Spanish
  • B+M layout position, size
  • ultrasound area size
  • font size
Základné merania a výpočty
  • B mode general measurements and calculations
  • Distance, Time, Velocity
  • Heart Rate (methods: 1 beat, 2 beats)
  • Stenosis % (method: 2 distances)
  • A/B Ratio (methods: 2 distances, 2 times, 2 velocities)
  • M mode general measurements and calculations
  • Distance
  • Length (method: 1 trace)
  • Area, Circumference (methods: 1 ellipse, 1 trace, 1 distance)
  • Volume (methods: 1 distance, 2 distances, 3 distances, 1 ellipse)
  • Angle (methods: 2 distances, 3 distances)
  • Stenosis % (methods: 2 distances, 2 ellipse or trace areas)
  • A/B Ratio (methods: 2 distances, 2 ellipse or trace areas, 2 ellipse or trace circumferences)
Balík Ľudských meraní a výpočtov
  • Human General

  • Human/Veterinary OB / Gyn packages: software supports unlimited number of user-defined GA tables, selected GA values are used for calculation of Average GA (Average Ultrasound Age - AUA).
    Human/Veterinary Cardiology measurements package automatically displays hint images that show where and how appropriate measurements must be performed.
  • Software supports the following measurements of Left Ventricle, Aortic Valve, Left Atrial: IVSd (Interventricular Septal Thickness, diastole), LVIDd (Left Ventricle Internal Diameter, diastole), LVPWd (Left Ventricle Posterior Wall Thickness, diastole), AOd (Aortic Root Dimension, diastole), IVSs (Interventricular Septal Thickness, systole), LVIDs (Left Ventricle Internal Diameter, systole), LVPWs (Left Ventricle Posterior Wall Thickness, systole), LADs (Left Atrial Dimension, systole).
  • Calculations: HR (Heart Rate), BSA (Body surface Area), Left ventricle volume (methods: Cubed, Teichholz, Gibson, Simpson's LVAM-LVAP, Simpson's single plane, Simpson's biplane, Bullet, Ellipsoid single plane, Ellipsoid biplane), SV (Stroke Volume), SI (Stroke Volume Index), EF (Ejection Fraction), CO (Cardiac Output), CI (Cardiac Index), STIVS (Interventricular Shortening), FS (Fractional Shortening), STPW (Posterior Wall Shortening), LVM (Left Ventricle Cardiac Mass), CMI (Cardiac Mass Index), LA/AO Ratio
  • Human Cardiology
  • Distance and area -based stenosis calculations at left (right) Subclavian, CCA (Common Carotid Artery), Bulb, ICA (Internal Carotid Artery), ECA (External Carotid Artery), Vertebral vessels at proximal, middle, distal locations
  • Human Vascular
  • Measurements: length, width, thickness of thyroid lobes
  • Calculations: volumes thyroid lobes; volume of thyroid
  • Human Endocrinology
  • Measurements: length, height, width of kidneys, bladder, prostate, testes
  • Calculations: volumes of kidneys, bladder, prostate, testes; RUV (Residual Urine Volume); PSAD (PSA Density)
  • Human Urology
  • Liver: Volume (CC, AP, LL diameters)
  • Gallbladder: Volume, Wall Thickness, Extrahepatic Bile Duct (EBD), Common Bile Duct (CBD), Common Hepatic Duct (CHD)
  • Pancreas: Head Diameter, Body Diameter, Tail Diameter, Pancreatic Duct Head, Pancreatic Duct Body
  • Spleen: Volume (length, width, thickness)
  • Gastrointestinal Tract: Appendix Wall Thickness, Appendix Diameter, Bowel Wall Thickness (at Stomach, Small Bowel, Large Bowel)
  • Urinary Bladder: Volume (length, height, width)
  • Right / Left Kidney: Volume (length, height, width), Pelvis Diameter
  • Human Abdominal
  • Measurements: length, height, width of uterus, cervix, ovaries, renals, follicles
  • Calculations: volumes of uterus, cervix, ovaries, renals, follicles
  • Human Gynecology (GYN)
  • Measurements: LMP (entered or from calendar), AC, BPD, FL, HC, FTA, AAPD, ATD, TAPD, TTD, CRL, GS, HL, TL, UL, OFD, BOD, Cereb, Clav, Rad, AFI, FHR, NT
  • Estimated date of birth (EDD) calculations: EDD(LMP), EDD(GA), EDD(AUA)
  • Ratios: FL / AC, FL / HC, FL / BPD, HC / AC, CI
  • Selected EFW values are used for calculation of Average EFW
  • Gestational Age (GA) calculations: GA(AC), GA(BPD), GA(CRL), GA(FL), GA(GS), GA(HC), GA(HL), GA(OFD), GA(TL), GA(UL), GA(HC/AC), GA(FTA),GA(ATD), GA(TAPD), GA(TTD), GA(BOD), GA(Cereb), GA(Clav)
  • Fetal Growth estimation (trending): AC(GA), BPD(GA), CRL(GA), FL(GA), GS(GA), HC(GA), HL(GA), OFD(GA), TL(GA), UL(GA), [FL/AC](GA), [FL/HC](GA), [HC/AC](GA), EFW(GA), AAPD(GA), ATD(GA), TAPD(GA), TTD(GA), BOD(GA), Cereb(GA), Rad(GA), Clav(GA), AFI(GA), FHR(GA), NT(CRL)
  • Selected Growth Tables are visualized as Fetal Growth Curves
  • Software supports unlimited number of user-defined Growth Tables
  • Human Obstetrics / Gynecology (OB / GYN)
  • Hip Angles (α, β), Femoral Head Coverage (FHC)
  • Human Musculoskeletal
  • Measurements: the same as general measurements of different modes (B, M)
  • Calculations: BSA via Height and Weight, BSA via Weight
Balík Veterinárnych meranía výpočtov
  • Canine OB
  • Measurements: GS, CRL, HD, BD
  • Gestational Age (GA) calculations: GA(BD), GA(CRL), GA(GS), GA(HD)
  • Feline OB
  • Measurements: HD, BD
  • Gestational Age (GA) calculations: GA(BD), GA(HD)
  • Ovine OB
  • Measurements: CRL
  • Gestational Age (GA) calculations: GA(CRL)
  • Bovine OB
  • Measurements: BD, CRL, HD, UD
  • Gestational Age (GA) calculations: GA(BD), GA(CRL), GA(HD), GA(UD)
  • Equine OB
  • Measurements: AOD, BPD, CRL, EOD, GS
  • Gestational Age (GA) calculations: GA(AOD), GA(BPD), GA(CRL), GA(EOD), GA(GS)
  • Llama OB
  • Measurements: BPD
  • Gestational Age (GA) calculations: GA(BPD)
  • Goat OB
  • Measurements: BPD
  • Gestational Age (GA) calculations: GA(BPD) for different species
  • Animal Cardiology
  • Left Ventricle, Aortic Valve, Left Atrial measurements: IVSd, LVIDd, LVPWd, AOd, IVSs, LVIDs, LVPWs, LADs, ET
  • Calculations: HR, LV volume (Cubed, Teichholz, Gibson), SV, EF, CO, STIVS, FS, STPW, LA/AO, VCF
  • Directly from USB port (if connected to USB 3.0)
  • External power supply, 100~240V AC, 50~60 Hz (if connected to USB 2.0)
Rozmery a hmotnosť
  • aluminum enclosure
  • dimensions W x D x H, mm: 106 x 105 x 21
  • weight, kg: 0.26
  • drawings: see here, PDF file
Ultrazvukový softvér
Odporúčané parametre počítača
  • Windows® based Desktop/Notebook/Tablet PC
  • Screen 1024x768 or more, IPS or PLS technology
  • CPU i3/i5/i7 1.8 GHz or faster
  • 2 Gb of RAM or more
  • USB 2.0/3.0 interface
  • Windows® XP SP3, Windows® Vista SP2, Windows® 7, Windows® 8, Windows® 10 (all versions 32/64-bit)
transrectal, transvaginal

small parts, vascular, veterinary
abdominal, cardiac, veterinary

abdominal, pediatrics, cardiac, veterinary

abdominal, obstetrics, pediatrics, small parts

obstetrics, pediatrics, small parts

obstetrics, pediatrics, small parts
